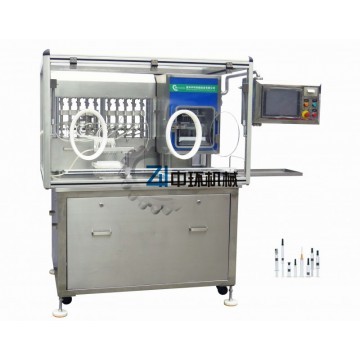

ZLS-300  Prefillable syringes filling and closing machine

To fill glass prefillable syringes and insert stoppers into syringe barrels.

To fill glass prefillable syringes and insert stoppers into syringe barrels.

Syringe filling and assembling line function as unscrambling syringes and putters, filling material, plunging putter, labeling, weighing etc.

Servo motion control system is applicated to call formula parameters easier and save parameters' setup time.

Magnetic cup holder is used to replace different size of syringe conveniently.

Centrifugal unscrambling can reduce the noise when machine are running.

Main technical parameter:

Filling volume(ml): 0-20ml

Filling accuracy: ≤±3‰

Suitable syringes(ml): 0.5ml, 1ml, 2.25ml, 3ml, 5ml, 10ml, 20ml

Theoretical output: 20-25pc/min (1200-1500pc/hour）

Motor power: 1.1Kw

Overall dimension(mm): 1560*800*1800mm(L*W*H)

Machine weight(kg): 650
