Brief introduction:

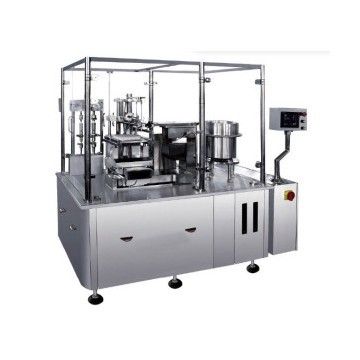

Yg-yzg2 type prefilled syringe filing machine is a new type of liquid filling machineour company has developed to meet the new requirements of pharmaceutical technis. The total designing is fully according to GMP requirements for production.
Production capacity:
3Ml 60 syringes/min
Working principle:
This machine consists of syringe tray, filling system, stopper supplying system and electric control system.
The two servo motors control the ceramic pump to set the filling volume. The other two servo motors drive the syringe tray to move in the horizontal direction to fill the syringe and seal it.
Characteristic:
Servo motor control, filling precision is high, running speed is high, filling error is small.
Ceramic pump filling, without dripping, easy to disassemble and clean.
Horizontal positioning is precise, running is stable, and the change of the syringe tray is easy.
Touch panel operation and PLC control, with inter-lock function, relable safety standard and high automation degree.
CE certified, standard electric installation, safety guarantee on operation.
Equip with acrylic glass protection hood.
Optional 100-class laminar flow
Optional nitrogen, filling and vacuum device
The whole machine is designed according to GMP requirements.
